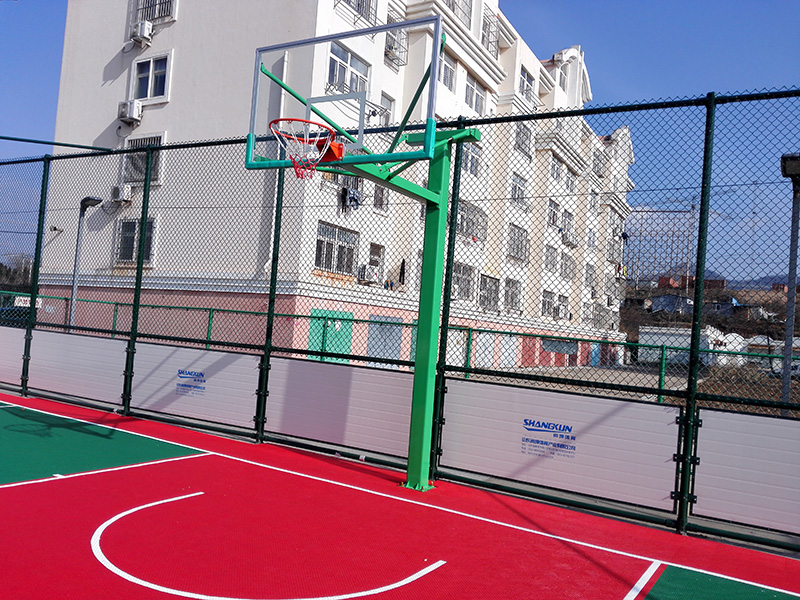

Underground square tube basketball stand

Product name: Underground square tube basketball stand/Basketball loop stand/Basketball stands/Basketball frame/Basketball support

Main material: Steel pipe, SMC

Underground burial method:

Pre-buried type. The hole space of the pre-buried parts is 250*250mm. Two holes at the front and three holes at the back.

Column specification:

180*180mm square tube. The horizontal end head at the top of the column adopts 200*100mm square tube. Welding process.

The bottom of the column is welded with a flange plate, with a size of 300*300mm and a thickness of 8mm. It comes with a square floor cover formed by one-time stamping of steel plates.

Specification of the extension arm:

The main pipe is 150*100mm steel pipe. The extended arm length is 1800mm.

The specification of the pull rod:

It is formed by bending a φ42mm round pipe. The rear pull hanger rod is also made of a φ42mm round pipe, equipped with an adjusting lead screw, which can adjust the length and the levelness of the extension arm.

Backboard specification:

1800*1050mm, aluminum alloy frame, 10mm tempered glass backboard. The lower edge of the backboard is equipped with a regular EVA strip.

Basket ring specification:

φ18 solid core round steel, double spring elastic basket ring. The height of the hoop from the ground is 3050mm.

Product superiority of our basketball standing

1.The columns are made of high-strength steel through welding, with uniform and firm weld seam, no false or missed welds or other defects. The wall thickness of the pipe is greater than 4mm.

2. The basket ring is made of φ20 round steel and has undergone static load tests and stability tests, effectively preventing deformation and weld opening of the basket ring. Our basketball hoop have a longer service life.

3. The high-quality adjustable pull rod is made of thick and durable material.

4. Our basketball stands has undergone welding and powder coating treatment, making it safe, beautiful and durable.
