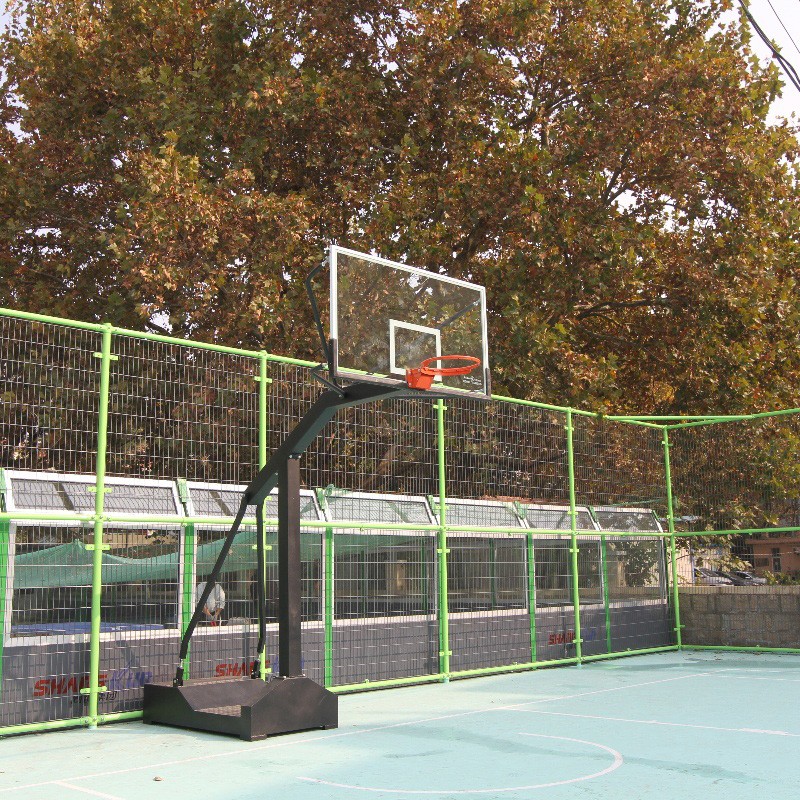

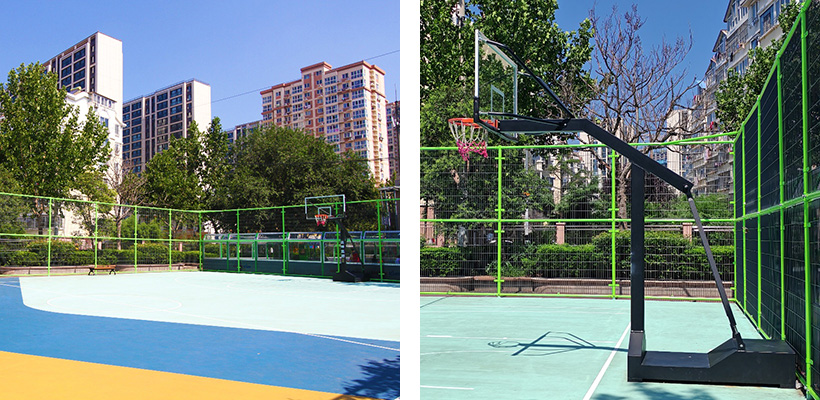

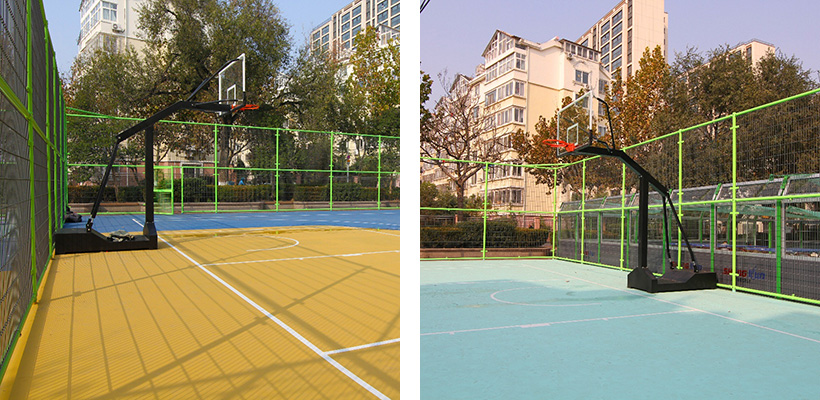

Mobile one-arm concave box basketball stand

Product name: Mobile one-arm concave box basketball stand/Basketball hoop stand/Basketball stands/Basketball frame/Basketball support

Main material: Steel plate, steel pipe, SMC/tempered glass

Box specification: 2000*1000mm. Box thickness 2mm. The front height is 500mm and the rear height is 380mm.

The counterweight part of the box:

The bottom adopt a whole steel plate, and are reinforced by welding 40*40mm Angle iron.

Specification of the extension arm:

The main pipe is 150*100mm steel pipe, the upper side secondary beam is made of 40*60mm steel pipe, and the extension arm length is 1800mm.

Pole specification:

The main pole is made of square tubes with a specification of 150*150mm.The upper and lower flange plates of the pole are 6mm thick steel plates, welding process, the connection with the extension arm is reinforced by four φ14mm bolts.

Rear pull specification:

40*40mm steel pipes are welded into a trapezoidal structure.

Backboard specification:

1800*1050mm, aluminum alloy frame, 10mm tempered glass backboard. The lower edge of the backboard is equipped with a regular EVA strip.

The specification of the pull rod:

It is formed by bending a φ42mm round pipe in one piece. The front end of the pull rod is welded with an adjustable joint, which can adjust the horizontal and vertical degree of the backboard.

Basket ring specification:

φ18 solid core round steel, double spring elastic basket ring. The height of the hoop from the ground is 3050mm.

Product superiority

1.The columns are made of high-strength steel through welding, with uniform and firm weld seam, no false or missed welds or other defects. The wall thickness of the pipe is greater than 4mm.

2. The basket ring is made of φ18 round steel and has undergone static load tests and stability tests, effectively preventing deformation and weld opening of the basket ring. Our basketball stands have a longer service life.

3. The pull rod of the basketball stand is adjustable. After the backboard is installed, keep it level and vertical. The double-nut adjustment is more secure than the ordinary connection.

4. Anti-theft nuts are installed on the components for safety reinforcement, providing waterproofing and anti-theft protection.
