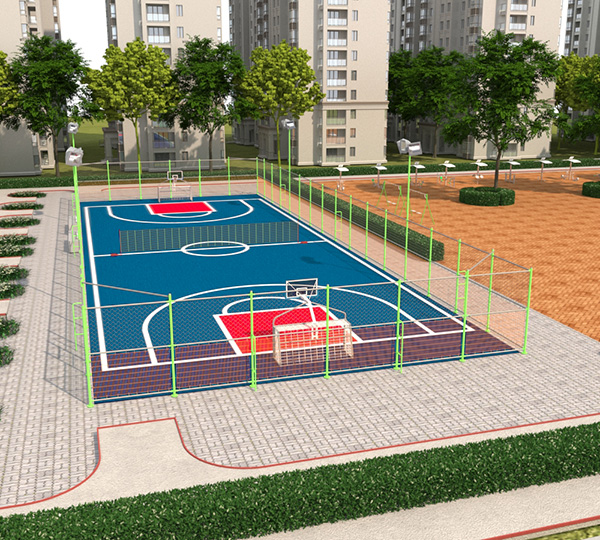

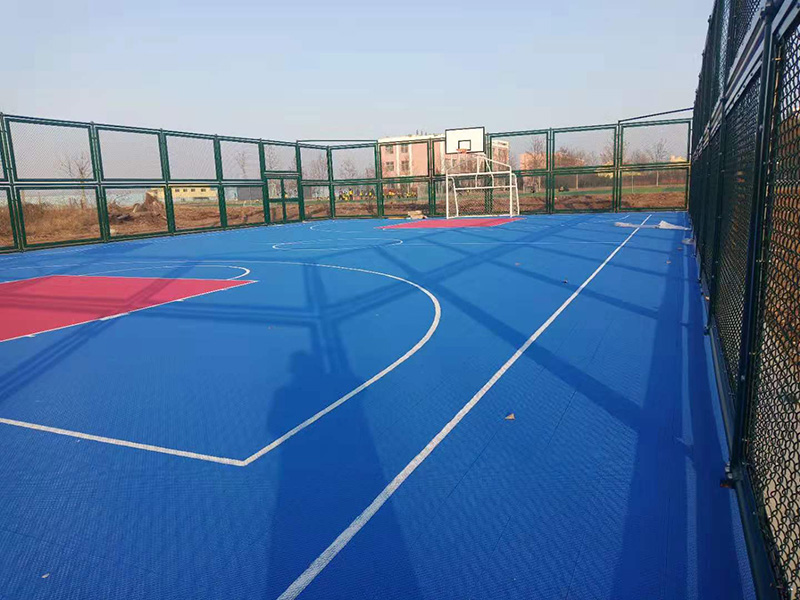

Integrated basketball and football stand

Product name: Integrated basketball and football stand

Product spec: 3297×3425×3950mm

Main material: Steel pipe

Product function

Technical parameter

Product Specification: 3297×3425×3950

The main column is a standard welded pipe of φ89×3.0, and the main load-bearing crossbeam is a square pipe of 150×150×4.0mm.

The backboard pull rods adopt standard welded pipes of φ48×2.5mm, and the connection between the backboard and the main frame is supported by five points.

The backboard is made of unsaturated polyester plastic (SMC), and the backboard adopts the pre-embedded nut method.

The side width of the plate is 50mm and the wall thickness of the plate is 8mm.

Behind the backboard, there are reinforcing ribs with a bottom thickness of no less than 5mm and a top thickness of no less than 3mm, which are supported in a "#" shape.

The height of the hoop from the ground is 3050mm, and the distance between the pillar and the front of the backboard is 1875mm.

The main post and crossbeam of the football goal are both standard welded pipes with a diameter of φ89×3.0mm.

The depth at the bottom of the goal is 1500mm and the depth at the top of the goal is 900mm.

The width of the inside of the goal is 3000mm and the height is 2000mm.

The installation adopts the pre-buried ground hook method. The burial depth of the ground hook is 500mm, and the foundation size is (410×410×600) mm.

Basket ring specification: φ18 solid core round steel, double spring elastic basket ring; The height of the hoop from the ground is 3050mm.
