Product name：Padel court
Type：Panoramic padel court
Other name: Padel tennis court/Panoramic padel court/Panoramic padel tennis Court/Padel sport court/Panoramic padel sport court
Site size of our padel tennis court
20000mm*10000mm
Spec of our paddle tennis court
Item | Specification |

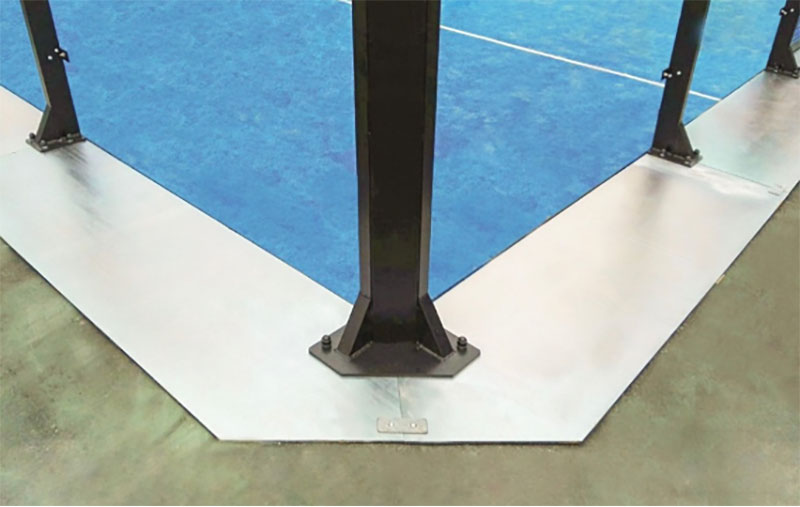

Corner post | Steel pipe spec: 100mm*100mm*3mm Height: 3m A 10mm thick flange plate are welded at the bottom. With a 8mm thick reinforcing rib. Electrostatic powder coating after shot blasting rust removal. |
Other Column/post | Steel pipe spec: 100mm*50mm*2.75mm Height: 3m A 10mm thick flange plate are welded at the bottom. With a 8mm thick reinforcing rib. Electrostatic powder coating after shot blasting rust removal. |
Lamp Post | Size: 60mm*60mm*2.75mm Length: 3m The height of the lamp is 6 meters. Install directly on the top of the lamp post |
Upper and lower crossbeam | Steel pipe spec: 100mm*50mm*2.75mm. Length: 4m/5m Electrostatic powder coating after shot blasting rust removal. |
Steel mesh frame | 40*20*2.0 steel pipes + steel frames/steel plates and 50*50mm steel mesh sheet with mesh wire thickness 4mm are welded by butt welding and laser welding to form a mesh frame. Electrostatic powder coating is applied after overall galvanization. |
Mesh pole | 80*80*3.0 aluminum alloy column tube, with built-in pure copper rope tensioner. Cast aluminum alloy pipe caps and rocker handles. The installation kit is made of steel and a 10mm thick flange plate is welded at the bottom. |
Middle mesh | PE woven mesh(3mm thickness), mesh hole 45*45mm. The top mesh is double-layer. A 6mm thick plastic-coated steel wire rope sandwished inside the PVC mesh fabric. Mesh in black color and the white edge is without logo. |
Hardware | 304 stainless steel bolts and nuts Stainless steel expansion bolts. PE gasket(for glass). Galvanized + electrostatically sprayed connectors(connect steel plate and glass) |
LED Light | 400W LED light for padel tennis use, 4 pieces |
Glass | Tempered glass, thickness 12mm |
Introduction of our paddle court
Padel tennis is a combination of tennis, squash, table tennis, badminton and other technical features, is a ball game played on a fully enclosed dedicated court, can be composed of porous concrete, cement, wood, artificial turf or any regular rebound surface. The venue is convenient (configurable) and can be assembled and disassembled according to the specific competition and tour.
Our top selling PANORAMIC court provide very premium finishing and clean view. It is with corners, but it has panoramic glass area for a good visual experience. Our product features a more robust and durable structure to withstand every strong impact, complies with the specifications of the International Padel Federation. It is ideal for indoor and outdoor clubs that seek to have the best price-quality ratio without losing visibility.
Character
1)Steel structure
Q235 steel, with strong rigidity and strong compression ability (strong strength and corrosion resistance).
2)Tempered glass
This kind of glass features high strength. It is not easy to break.
The glass is high transparent, provide good visibility and visual experience.
The glass is with high performance: high mechanical strength and impact resistance.
Application
Suitable for padel sport/padel tennis sport.
Advantage
Lower price, good quality and professional service.
