Double pannel fence

Product name: Sports field fence/sports field fencing/basketball court fence/football field fence

Type: Double clip/ double panel fence

Main material: Steel pipe, PE coated steel wire mesh

Technical parameter of our sports field fence

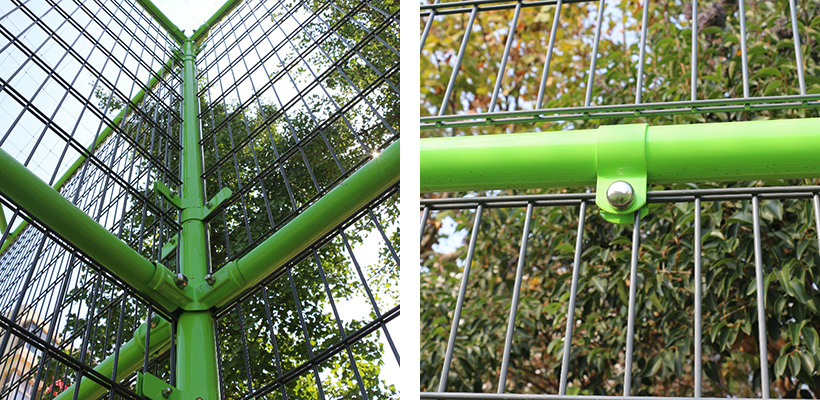

1.Frame: The cage net columns are made of high-quality round steel pipes with a specification of no less than φ76×3mm (Q235B material). The spacing between the columns is no more than 3m, and the overall height is 4m. There is no welding for extension to ensure an attractive appearance and bending strength. The connecting crossbeams are made of round (or square) steel pipes (Q235B material) with a diameter of no less than φ60×2.0mm, one at the top, one at the middle and one at the bottom, without welding and lengthening to ensure an attractive appearance and bending strength. At the top of each of the four corners, a round steel pipe (Q235B material) with a diameter of no less than φ60×2.0mm is used for triangular reinforcement connection, making the overall stability stronger. All pipes undergo galvanizing treatment and are sprayed with high-quality electrostatic powder, providing double guarantees for anti-corrosion capabilities. Around the frame, an auxiliary support column should be added every 10 to 12 meters on each side. Each column should be buried underground to a depth of no less than 400mm.

2. Enclosure net: The lower part (2m) of the frame enclosure net is equipped with impact-resistant protective nets. The square tubes of the frame shall not be less than 50×50×2.0mm. Double-wire reinforced steel mesh sheets with 6mm thick double horizontal wires and 6mm thick single vertical wires shall be used, and the mesh size shall not exceed 50×200mm. The upper part (2m) adopts frameless double horizontal wires of 6mm thick and single vertical wires of 6mm thick double clamping wires, which are fixed to the column with clips or springs.

Product function of this sport court fence:

The sports field fence is also known as "stadium fence" or "stadium guardrail net". It is a new type of protective product specially designed for stadiums. The stadium fence is mainly used to define the competition area, prevent spectators from entering the field, and protect athletes from external interference at the same time.

Product superiority

1.High-strength wire mesh, solid steel bars, anti-impact mesh blocks, with high strength and greater ornamental value.

 2. It is fixed with national standard 304 stainless steel screws and galvanized self drilling screws, which ensures a firm installation and strong anti-corrosion ability, meeting the long-term usage standards of the site.

Application place

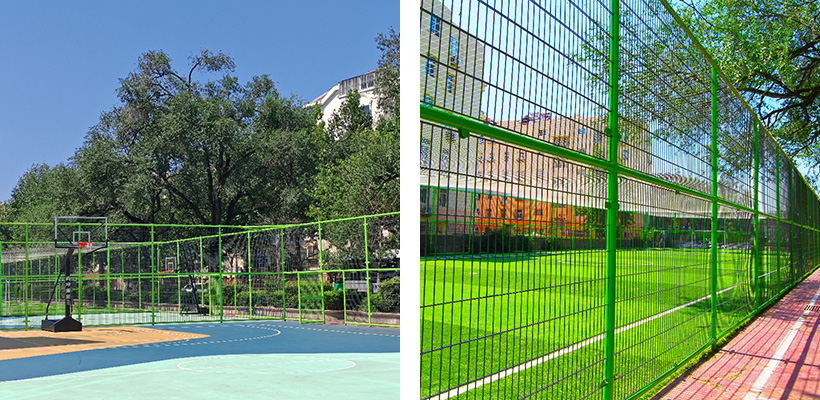

1. Sports field

Such as tennis courts, basketball courts, football fields, hockey fields, volleyball courts, etc.

2. Public places:

Airports, resort areas, commercial plazas, park green Spaces, residential communities, road intervals, river embankment protection, and any other areas that require separate protection and isolation.
