Product name: Padel court
Type: Super panoramic padel court
Introduction

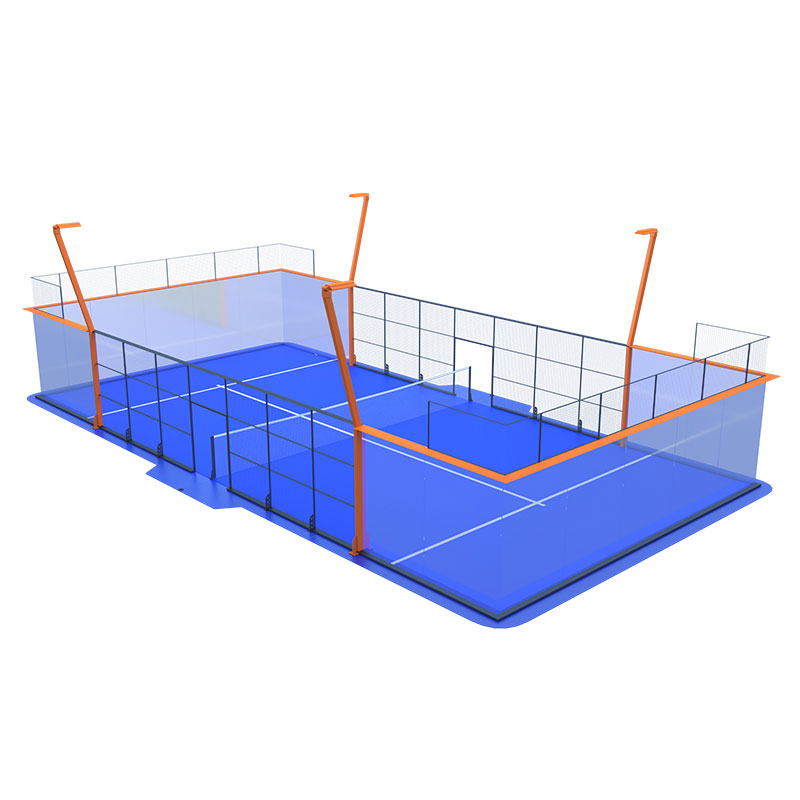

The super panoramic court has been designed to achieve the better visual effect. It is without corners (pillars), offer maximum performance to both players and spectators.It is recognized as the best padel court due to the clean view it provides and and the most avant-garde design.Enjoy an incredible playing experience with our high quality super panoramic court.
Site size of our padel tennis court:
20000mm*10000mm
Spec of our paddle court:
Item | Specification | Qty |
Column of Lamp pole | Size: 100mm*50mm*2.75mm Height: 3m 10mm thick flange plate are welded at the bottom. With a 8mm thick reinforcing rib. Stick 40*4.5 adhesive tape | 4pcs |
Lamp pole | 100mm*50mm*2.75mm steel pipe, height 3m, The height of the lamp is 6 meters. Install directly on the top of the lamp post | 4pcs |
Upper crossbeam | The crossbeam above the glass is made of 155*40*2.5 bullet steel pipe. The upper crossbeam of the mesh frame is made of 80*40*2.5 steel pipe. | 12pcs |
lower crossbeam | All are made of 133*40*2.5 trapezoidal steel pipes. | 12pcs |
Steel mesh frame | Steel plate welded frame, wire thickness 4mm, hole 50*50mm, steel mesh sheet. The mesh frame is formed by butt welding combined with laser welding. | 26pcs |
Mesh pole | 80*80*3.0 aluminum alloy column tube, with built-in pure copper rope tensioner. Cast aluminum alloy pipe caps and rocker handles. The installation kit is made of steel and a 10mm thick flange plate is welded at the bottom. | One set(2pcs) |
Middle mesh | 3mm thick PE woven mesh, mesh hole 45*45mm. The top mesh is double-layer. A 6mm thick plastic-coated steel wire rope sandwished inside the PVC mesh fabric. Mesh in black color, edge in white color without logo. | 1set |
Hardware | 304 stainless steel bolts and nuts Stainless steel expansion bolts. PE gasket for glass. Galvanized + electrostatically sprayed connectors(connect steel plate and glass) | 1set |
LED Light | 400W LED light for padel tennis court use | 4pc |
Glass | Tempered glass, thickness 12mm |
Character of our paddle tennis court:
1)Steel structure
All metal structures are made of Q235 steel with low carbon content, strong rigidity and strong compression ability (strong strength and corrosion resistance).
Electrostatic coating, coating thickness is uniform, good spraying effect on complex corners.
The classic coat will be followed by a second coat of paint (corrosion resistance).
Hot dip galvanizing: Good corrosion resistance (corrosion resistance).
Electro-welded mesh is continuous between frames (injury prevention).
2)Glass
Tempered glass: high strength, not easy to break.
Break will be broken into obtuse Angle does not hurt.
China's toughened glass is second to none in the world.
The glass is high transparent, provide good visibility and visual experience.
The glass is with high performance: high mechanical strength and impact resistance.
Application:
Suitable for padel sport/padel tennis sport.
Advantage:
We can provide our customer lower price because we are factory. Also we can ensure quality and provide customers professional service.
Other name:
Padel tennis court/Super panoramic padel tennis court/Padel sport court/Super panoramic padel sport court
