Frame Splicing Fence

Product name:  Frame splicing fence

Othere name: Frame-type enclosure net, board fence, sports field fence, football field fence, stadium fence, stadium guardrail net,sports court fencing, basketball court fence, football field fence

Main material: Steel pipe, PE coated metal wire mesh

Product function

The sports field fence is also known as "stadium fence" or "stadium guardrail net". It is a new type of protective product specially designed for stadiums. The stadium fence is mainly used to define the competition area, prevent spectators from entering the field, and protect athletes from external interference at the same time.

Technical parameter of our sports court fencing

Column

① Use φ76 steel pipes with a wall thickness of 2.5mm;

② The height above the ground is 4m, with an extension of 400mm, and the total length of the column is 4.4m.

③ Direct burial installation method;

Crossbeam

① Use φ60 steel pipes with a wall thickness of 2.0mm; One at the top, one in the middle and one at the bottom;

Chain link net frame net

① It is welded with 50*1.5 square tubes; Weld U-shaped parts around the four sides inside the frame;

② The PE plastic-coated 2.5-4.0 chain link mesh with a mesh size of 50*50mm is threaded with 8mm thick steel bars and then bolted into the U-shaped part.

③ Use 40*3 flat steel to cover both sides of the cut edge of the chain link net to prevent scratches.

④ Perimeter: m, Height: 4m

Fastener:

①304 stainless steel/Dacromet carriage bolts ②304 stainless steel cap nuts ③304 stainless steel anti-theft cap

Superiority of our stadium court fence

1. Combined installation, a quick installation method, is not easily restricted by on-site errors or weather conditions, occupies a small area, requires few personnel, and needs very little installation equipment. The construction period can be controlled and is the shortest.

2. Detachable connection structure, no need to worry about connection problems, and the overall appearance is harmonious and beautiful.

3. Only transportation and installation are required. There is no loud noise from cutting metals, no toxic gases released from paint, no light pollution during welding, and no large current during welding. It is completely environmentally friendly and safe for construction.

4. It is made of high-standard, low-carbon and environmentally friendly high-quality galvanized iron wire, wrapped with high-quality high-density original PE, and no recycled raw materials are added to ensure the service life of the product.

5. The 350-degree high-temperature plasticizing process ensures that the inner low-carbon galvanized iron wire is closely adhered to the outer plastic layer, preventing air infiltration and thus extending the product's service life.

Application place

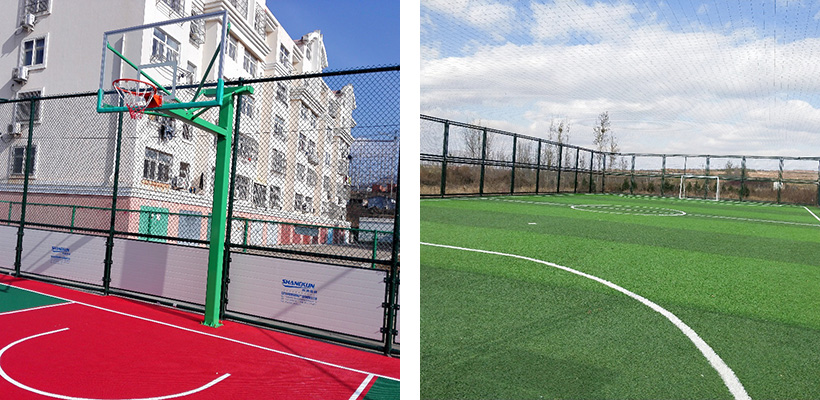

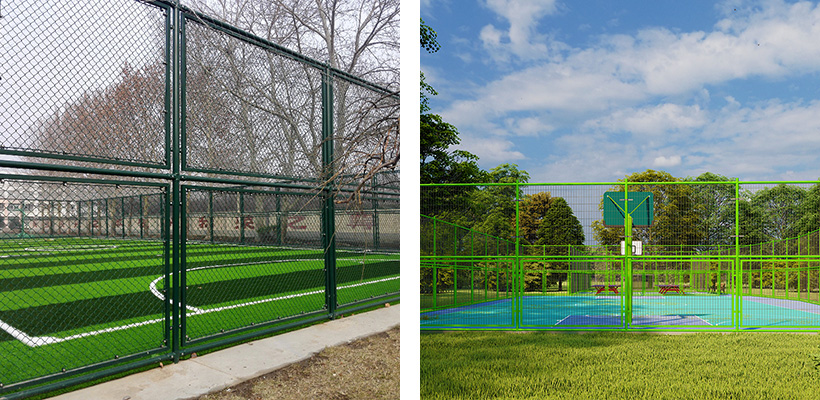

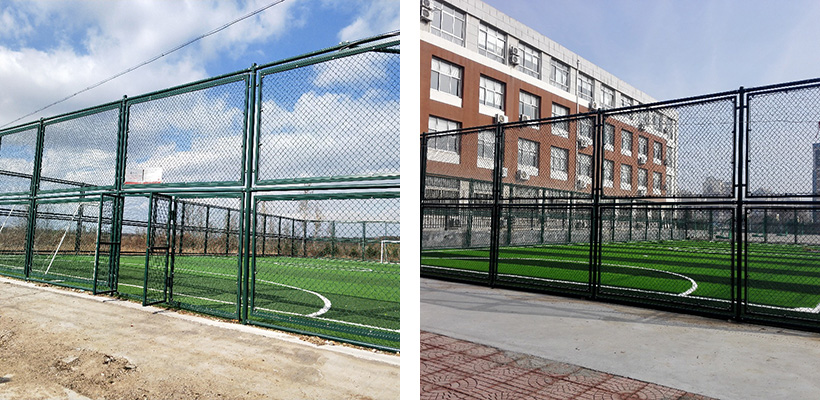

This product is suitable for sports fields such as tennis courts, basketball courts, football fields, hockey fields and volleyball courts.
