Flat-pull fence

Product name: Flat-pull fence

Other name: sports court fence, basketball court fence, football field fence

Main material: Steel pipe, PE coated metal wire mesh

Technical parameter of our sports court fencing

Column: ф76*2.5mm steel pipe, center spacing 3070mm.

Crossbeam: ф60*2.0mm steel pipe, three-beam structure.

Height: 4m above the ground of the column, with an extension of 300mm,The total length of the column is 4.3m.

Connecting parts: 2.5mm steel plate stamping, galvanized and then powder-coated, double anti-corrosion.

Fasteners: 18*4mm aluminum alloy pressure strips, Dacromet carriage bolts, ф5.5*25 Dacromet self-drilling screws, 304 stainless steel anti-theft cap, special PE waterproof pads,  anti-theft caps of self drilling screws, waterproof pipe plugs.

Mesh: low-carbon galvanized iron wire + original imported high-density PE plastic layer, inner diameter 2.3mm/ outer diameter 3.6mm/ hole diameter 50mm*50mm.

Superiority of our tennis court fencing

1. Combined installation, a quick installation method, is not easily restricted by on-site errors or weather conditions, occupies a small area, requires few personnel, and needs very little installation equipment. The construction period can be controlled and is the shortest.

2. Detachable connection structure, no need to worry about connection problems, and the overall appearance is harmonious and beautiful.

3. Only transportation and installation are required. There is no loud noise from cutting metals, no toxic gases released from paint, no light pollution during welding, and no large current during welding. It is completely environmentally friendly and safe for construction.

4. It is made of high-standard, low-carbon and environmentally friendly high-quality galvanized iron wire, wrapped with high-quality high-density original PE, and no recycled raw materials are added to ensure the service life of the product.

5. The 350-degree high-temperature plasticizing process ensures that the inner low-carbon galvanized iron wire is closely adhered to the outer plastic layer, preventing air infiltration and thus extending the product's service life.

Product function

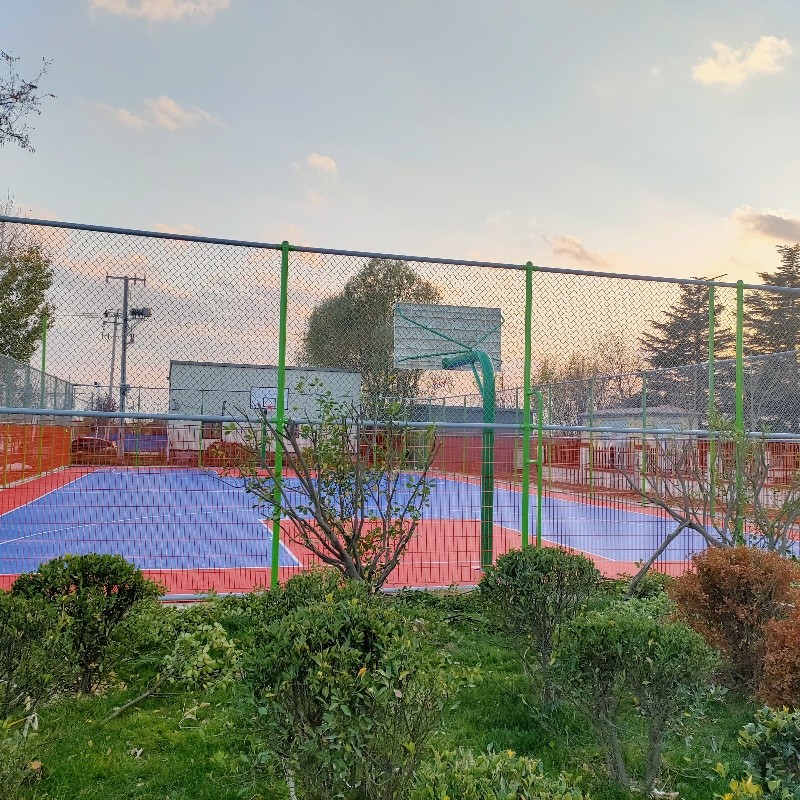

The sports field fence is also known as "stadium fence" or "stadium guardrail net". It is a new type of protective product specially designed for stadiums. The stadium fence is mainly used to define the competition area, prevent spectators from entering the field, and protect athletes from external interference at the same time.

Application place

1. Sports field such as tennis courts, basketball courts, football fields, hockey fields, volleyball courts, etc.

2. Public places: Airports, resort areas, commercial plazas, park green Spaces, residential communities, road intervals, river embankment protection, and any other areas that require separate protection and isolation.
