Reinforced panoramic padel court

Polished Introduction of Our Wind-Resistant Panoramic Padel Court

Padel tennis combines technical elements from tennis, squash, table tennis, and badminton. Played on a fully enclosed dedicated court, it can be installed on porous concrete, cement, wood, artificial turf, or any standard rebound surface. Our wind-resistant panoramic padel courts feature a modular design for flexible configuration, enabling quick assembly and disassembly to adapt to competitions, events, and venue-specific requirements.

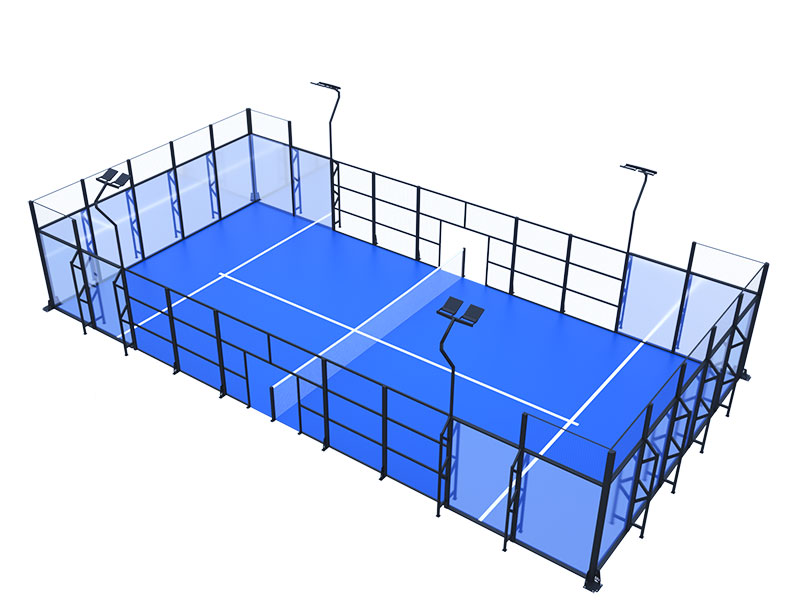

As our best-selling model, this panoramic court delivers premium finishing and unobstructed sightlines. Its reinforced corner posts and full panoramic glass panels provide an exceptional visual experience for players and spectators alike. Built to withstand high impacts, the robust structure meets International Padel Federation (FIP) specifications, making it ideal for indoor and outdoor clubs seeking the best balance of visibility, quality, and value.

Core Features

1.Upgraded Reinforced Steel Structure Our frame uses high-grade Q235 steel, with multi-specification structural components optimized for wind resistance:

Corner columns: 100×100×3.0mm sector steel tube (4m height) with 10mm flange plates and 8mm reinforcing ribs;

Other columns: 100×50×2.75mm rectangular steel tube (3m height) with reinforced connection;

Wind-resistant columns: 16 additional 70×50×2.5mm rectangular steel reinforcing tubes;

Crossbeams: 100×50×2.75mm rectangular steel tubes (4/5m length);

Mesh frames: 40×20×2.0mm steel tubes + 4.0mm thick rebar mesh (50×50mm), laser-welded for structural integrity All steel components undergo anti-corrosion treatment, offering exceptional rigidity, compression strength, and long-term durability even in high-wind environments.

2.High-Performance Tempered Glass Our safety tempered glass boasts superior mechanical strength and impact resistance, making it difficult to break. Its high transparency ensures clear visibility and an immersive playing experience, while meeting all FIP safety standards.

3.Complete Premium Accessories The court is equipped with:

Aluminum alloy tennis posts with built-in pure copper tensioners

Competition-grade double-layer PE net (black with white edges, no markings)

304 stainless steel hardware and hot-dip galvanized connectors for secure installation

4.Applications

Suitable for professional padel tournaments, commercial padel clubs, sports venues, resorts, and recreational play, for both indoor and outdoor use.

5.Key Advantages

Wind-resistant design: Reinforced structure for stability in harsh conditions

FIP-compliant quality: Meets international standards at a competitive price

Premium panoramic experience: Unobstructed views for players and spectators

Full customization support: Modular design, customizable colors, and flexible configurations

Professional service: Factory direct supply with reliable after-sales support
