Elevated Floor

Polished Introduction of Our Padel Court with Elevated Floor System

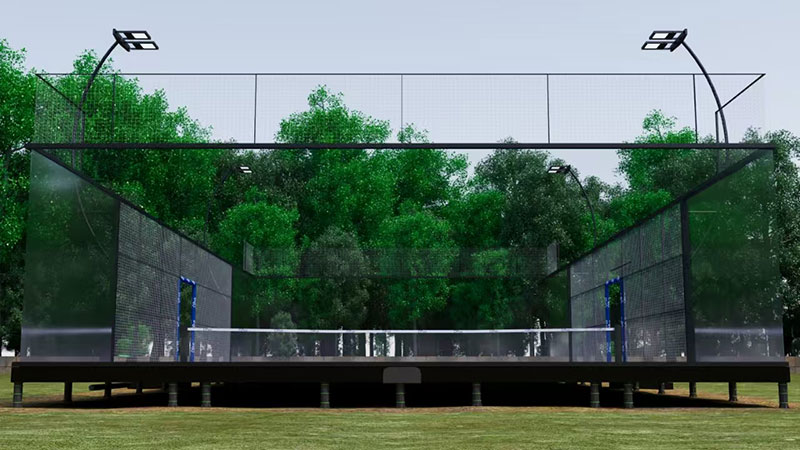

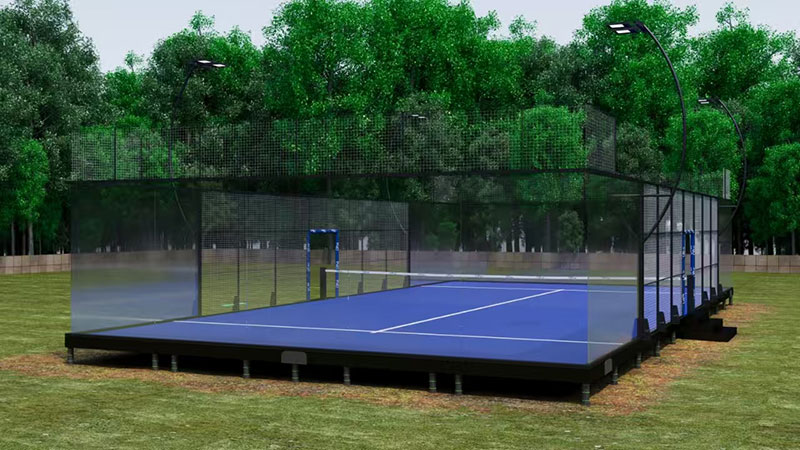

Padel tennis blends technical elements from tennis, squash, table tennis, and badminton, played on a fully enclosed dedicated court. Our standard double panoramic/super panoramic padel court with elevated floor system offers unmatched flexibility, as it can be installed on uneven ground or temporary venues without requiring complex concrete works. The modular design allows for quick assembly and disassembly, making it ideal for competitions, events, and multi-use facilities.

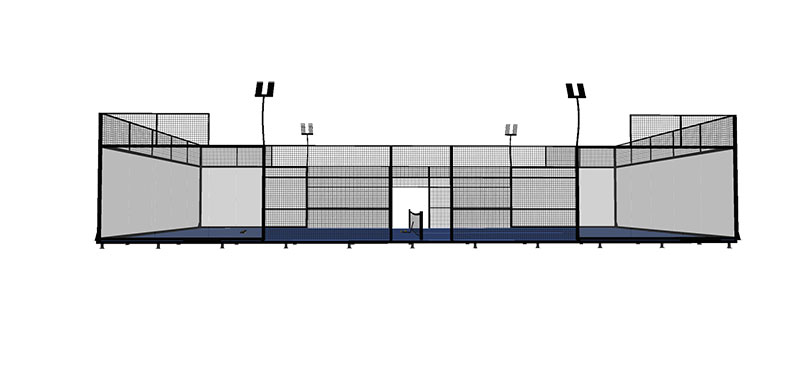

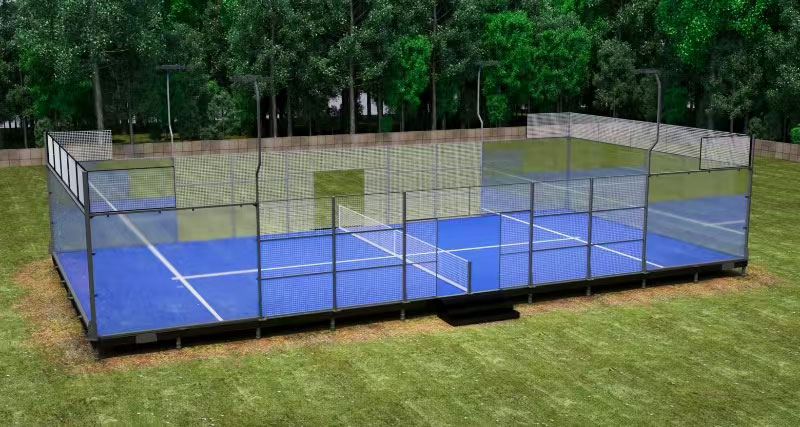

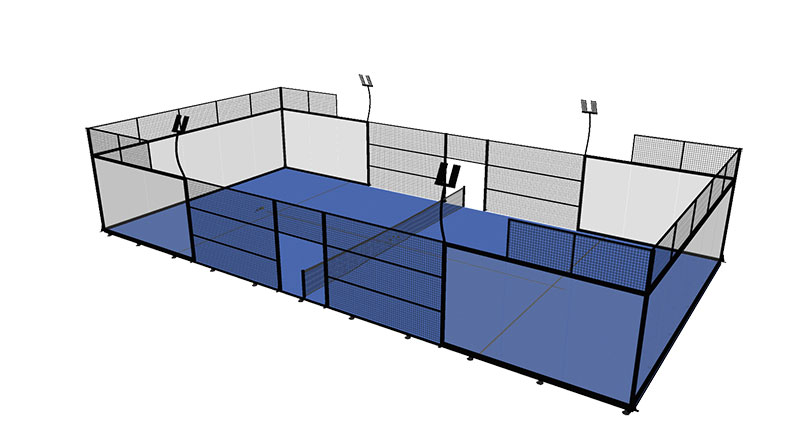

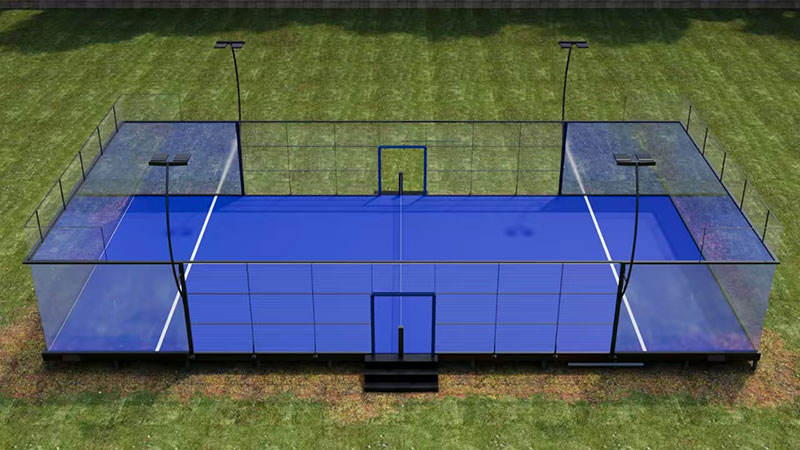

As our premium panoramic model, this court features high-quality finishing and unobstructed sightlines. Reinforced corner posts paired with full panoramic glass panels ensure an immersive visual experience for players and spectators alike. The robust steel structure meets International Padel Federation (FIP) specifications, while the elevated floor system provides stable, level play even on challenging terrain. This makes it perfect for clubs and event organizers seeking durability, visibility, and adaptability.

1.Core Features

Heavy-Duty Steel Court Structure The frame is constructed from high-grade steel, offering exceptional rigidity, compression strength, and corrosion resistance. Reinforced corner posts and beams withstand high impacts, fully complying with FIP standards. The design ensures long-term durability for both indoor and outdoor use.

High-Transparent Tempered Glass The high-strength tempered glass boasts superior mechanical strength and impact resistance, making it difficult to break. Its high transparency ensures excellent visibility and an immersive playing experience, meeting all safety requirements.

2.Professional Elevated Floor System

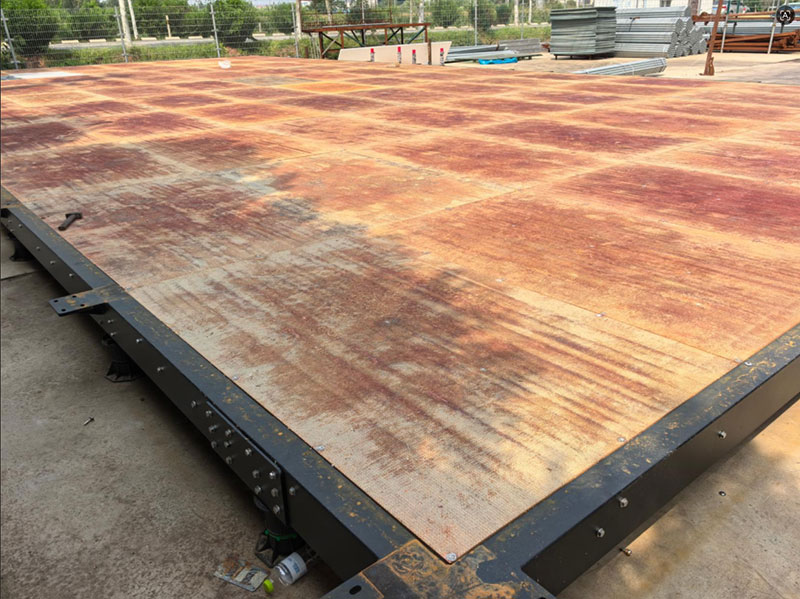

Load-Bearing Edge & Main Beams: Made of heavy-duty rectangular steel pipes (100×200×3.0mm, 80×60×2.75mm), hot-dip galvanized and powder-coated for maximum strength and corrosion resistance.

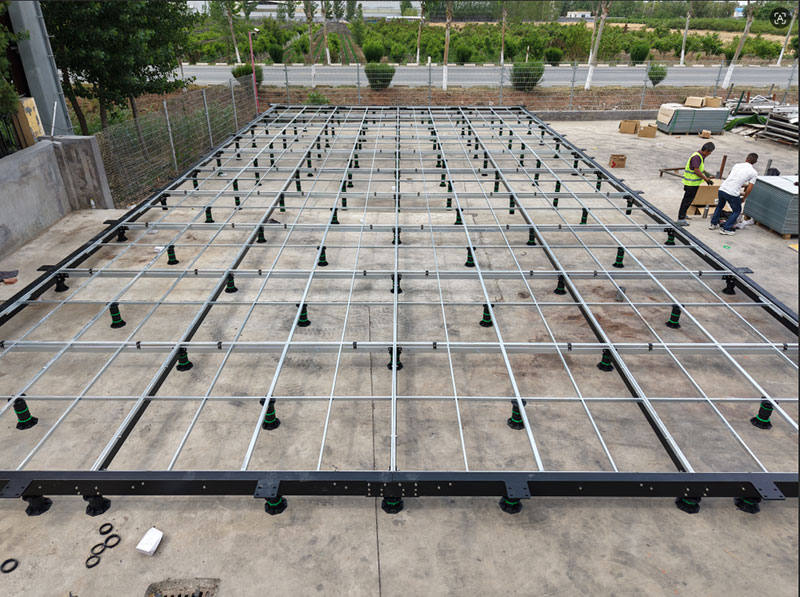

Floor Load-Bearing Frame: 40×40×2.0mm welded steel pipes, forming a stable modular grid (2m × 2.5m).

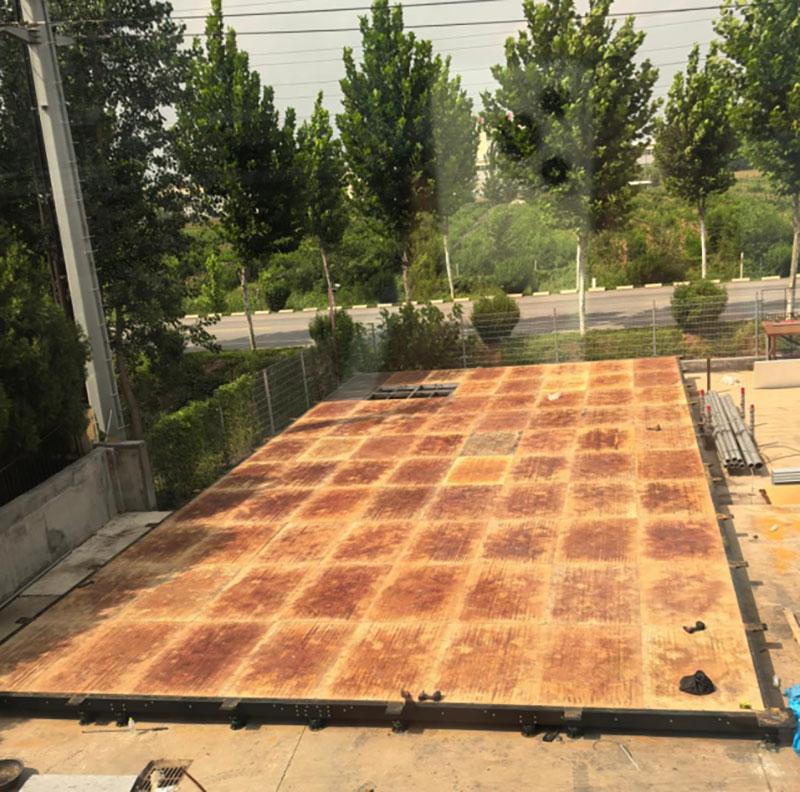

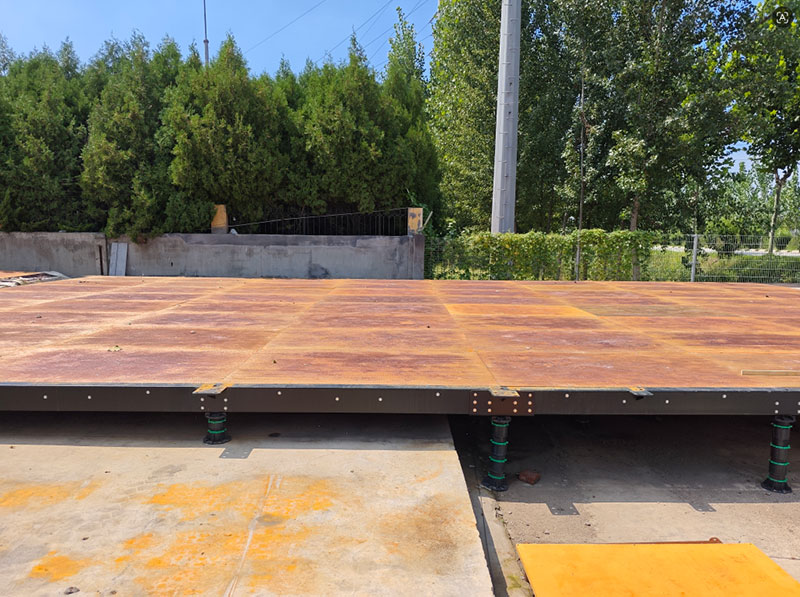

Floor Panel: 20mm thick high-density fiberglass panels, offering excellent fire, water, and weather resistance.

Adjustable Base Assembly: Engineering plastic bases with adjustable height (275–375mm) to level the court on uneven ground.

Hardware: Grade 8.8 hot-dip galvanized bolts and 304 stainless steel anti-theft caps for secure, long-lasting installation.

3.Applications

Ideal for padel tennis tournaments, commercial padel clubs, resorts, and temporary events. The elevated floor system is especially suited for locations with uneven terrain, weak subgrades, or where permanent construction is not feasible.

4.Key Advantages

FIP-compliant panoramic court with premium visibility

Elevated floor system enables installation on almost any ground type

Heavy-duty steel structure and corrosion-resistant treatment for long service life

Modular design for flexible, fast assembly and disassembly

Factory direct pricing with reliable quality and professional service
