Breathable spray-grained running track

Product name: Breathable spray-grained running track

Product introduction:

The breathable spray particle track is an economical type of plastic track made of a composite system of polyurethane and rubber particles. It uses a single-component PU glue as the adhesive, mixes black rubber particles to form the base layer, and applies high-pressure sprayed EPDM colored particles as the surface layer. The overall structure is porous and breathable, capable of quickly removing water vapor from the base layer. The construction is simple and the cost is affordable. It complies with the national standard GB 36246-2018 and is the mainstream paving choice for ordinary campuses and fitness venues.

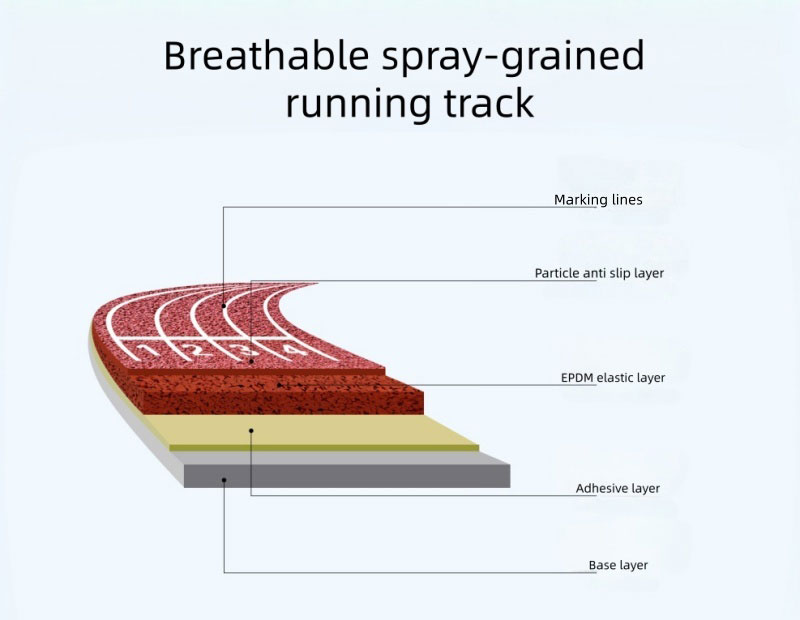

Core structure and standard specifications：

The standard paving thickness is 13mm, with no special thickening requirements. The double-layer porous structure takes into account both the elasticity of the foundation and drainage and ventilation.

Bottom layer (10mm) : A mixture of single-component polyurethane mortar and 4-6mm black rubber particles is spread and formed. It has a high porosity, providing a base elasticity and drainage channels for the site.

Surface layer (3mm) : High-strength wear-resistant PU glue is mixed with colored EPDM particles and formed into an anti-slip and wear-resistant surface layer through high-pressure spraying process. The particles adhere evenly, taking into account both color and anti-slip performance.

Core advantage

1.High breathability and anti-bubbling:

The porous structure of the bottom layer can quickly expel water vapor and air from the base layer, fundamentally avoiding the problems of bubbling and delamination caused by water vapor accumulation in the site. It is suitable for sites with slightly higher moisture content in the base layer.

2.Basic sports protection:

Shock absorption 30%-45%, vertical deformation 0.5-2.0mm, rebound rate ≥60%, can effectively buffer the impact force of basic sports, reduce joint injuries in ordinary sports, suitable for daily exercise and basic training.

3.Weather-resistant, practical and easy to maintain:

Resistant to ultraviolet rays and ozone erosion, the surface color does not fade for a long time. The surface is hydrophobic, dries quickly after rain without water accumulation, and can be used all day long. It only needs to be rinsed with clean water on a daily basis. Local damage can be quickly repaired and the maintenance cost is low.

4.Simple construction and short construction period:

The raw materials are well mixed, the paving and spraying processes are simple, the on-site construction efficiency is high, and the overall curing and curing only take 5 to 7 days, which can quickly complete the site paving.

Key point of construction

The base layer is made of cement concrete or asphalt, with a moderate requirement for the flatness of the base layer (flatness error ≤4mm/3m). The core construction steps are:

1.Base treatment: Leveling, repairing, decontamination, and applying a special interface agent to enhance interlayer adhesion.

2.Base layer spreading: Evenly mix single-component PU glue with black rubber particles, mechanically spread and compact to form, and reserve breathable pores.

3.Surface coating
