Panoramic Integrated Padel Court

Polished Introduction of Our 6-Hole Glass Panoramic Integrated Padel Court

Padel tennis combines the technical characteristics of tennis, squash, table tennis, and badminton. Played on a fully enclosed dedicated court, it can be installed on porous concrete, cement, wood, artificial turf, or any standard rebound surface. Our 6-hole glass panoramic integrated court features a modular design with an integrated roof canopy, offering flexible configuration, quick assembly, and disassembly to adapt to tournaments, events, and venue-specific requirements.

As our premium panoramic model, this court delivers high-quality finishing and unobstructed sightlines. Reinforced corner posts paired with full panoramic glass panels ensure an immersive visual experience for players and spectators alike. The robust steel structure meets International Padel Federation (FIP) specifications, with an integrated canopy system providing shade and weather protection, making it ideal for outdoor clubs seeking durability, visibility, and year-round playability.

Core Features

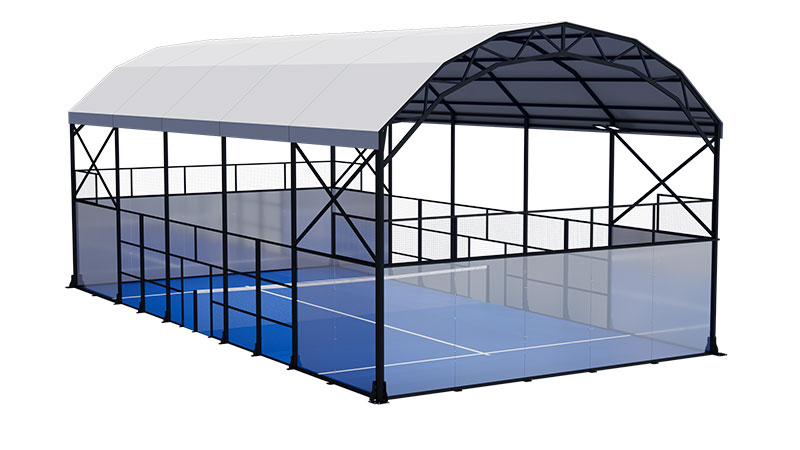

1.Heavy-Duty Reinforced Steel Structure The frame is constructed from high-grade steel components for maximum strength and stability:

Corner Column: 100×100×3.0mm square steel tube (height 6m), with 10mm thick flange plates and 8mm reinforcing ribs

Other Columns: 100×50×2.75mm rectangular steel tube (height 3/6m), with reinforced connections and anti-collision rubber strips

Crossbeams: 100×50×2.75mm rectangular steel tubes (5m/4m lengths), with anti-collision rubber strips

Mesh Frame: 40×20×2.0mm steel tube + 3/4mm steel plate, laser-welded with 4mm diameter rebar mesh (50×50mm openings)

Roof Main Beam: 100×50×2.75mm rectangular steel tube with diamond bending welding, forming a sturdy truss structure All components are available with two anti-corrosion treatments: (1) electro-galvanized/electrophoretic + spraying, or (2) full hot-dip galvanizing + electrostatic powder coating, ensuring long-term durability.

2.High-Performance Tempered Glass The high-strength tempered glass boasts superior mechanical strength and impact resistance, making it difficult to break. Its high transparency ensures excellent visibility and an immersive playing experience, while meeting all FIP safety standards.

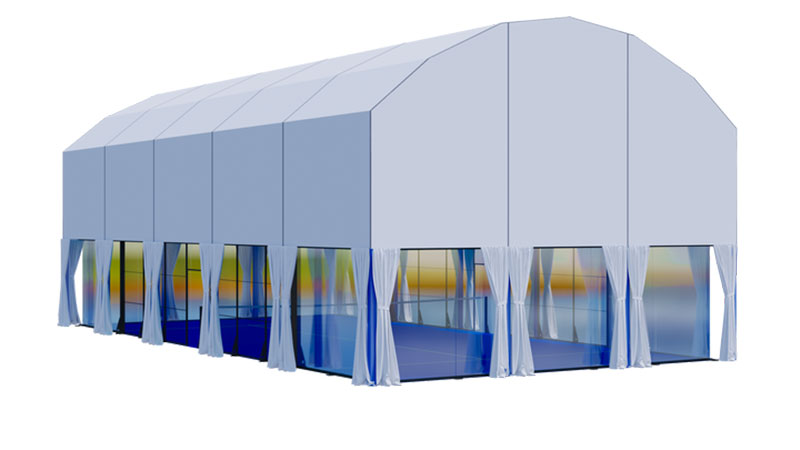

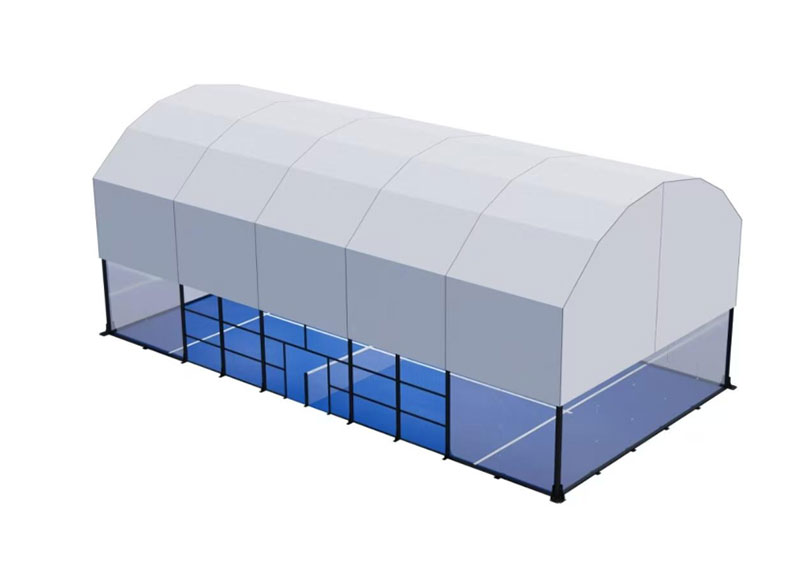

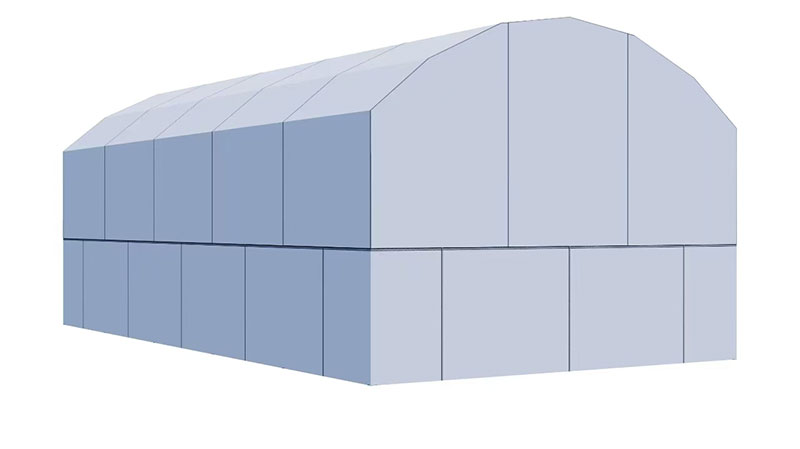

3.Integrated Canopy System The court includes a professional sunshade canopy with:

Canopy Fabric: 750g double-sided white/black PVC coated fabric, with a quick-assembly design

Support Structure: 40×80×1.5mm rectangular steel purlins and scissor braces for enhanced stability

Hardware: Hot-dip galvanized bolts, 304 stainless steel components, and anti-theft caps for secure installation

4.Premium Court Accessories

Tennis Post: 80×160×2.75mm rectangular steel tube with built-in pure copper tensioner

Net: 3mm thick PE braided net (black) with 45×45mm mesh, featuring double-layer top reinforcement

Applications

Ideal for professional padel tournaments, commercial padel clubs, outdoor sports venues, resorts, and recreational play. The integrated canopy system makes it especially suited for regions with high sun exposure or variable weather conditions.

Key Advantages

FIP-compliant panoramic court design with premium visibility

Integrated sunshade canopy for all-weather outdoor use

Heavy-duty steel structure with multiple anti-corrosion options

Modular configuration for flexible installation and event adaptation

Factory direct pricing with reliable quality and professional service
